Features of GSD-M6C control system of Guangshengde six-temperature zone lead-free reflow soldering machine

● Windows operating system, Chinese and English interface, easy to learn; two control methods, computer control and emergency manual control, with safety protection function; (independently developed software: Guangshengde PCBASE reflow soldering control software V1.0)

● The communication between PC and PLC (single-chip microcomputer) adopts PC/PP protocol, which works stably and prevents crashes;

● Powerful software function, online temperature measurement of PCB board, and analysis, storage and printing of the data curve at any time;

● Automatic monitoring and display of equipment working status, which is helpful for monitoring equipment at any time;

Performance advantages of GSD-M6C lead-free reflow soldering machine in six temperature zones

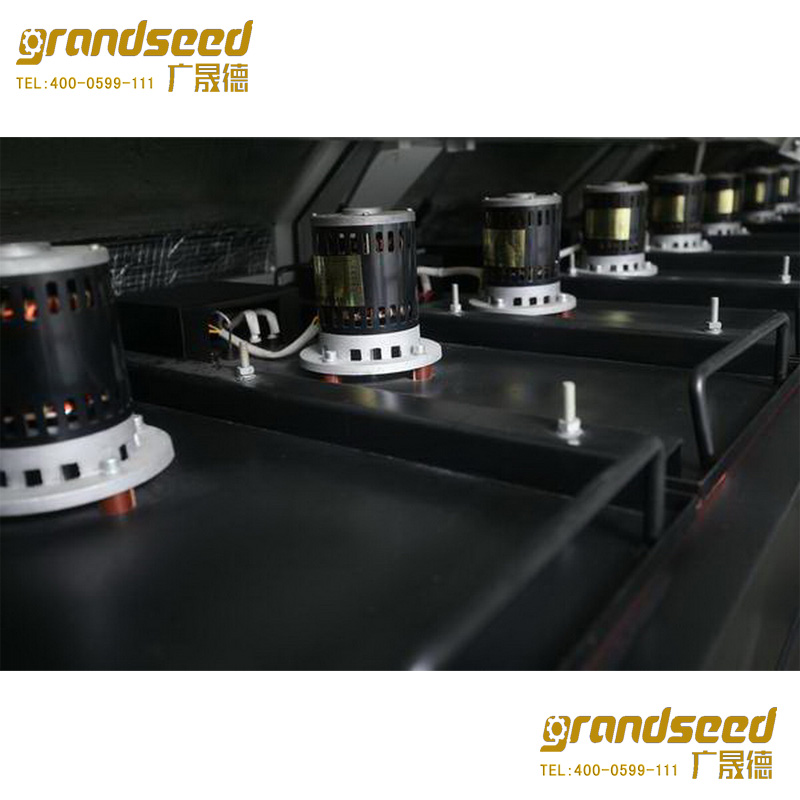

● In order to prolong the service life of the motor, our company’s technicians professionally designed it; make the internal cooling cycle convection, so that the temperature around the motor drops to about 38°C;

● The high-quality, high-temperature, high-speed motor has smooth wind, low vibration and low noise;

● Professional wind wheel design, stable wind speed, effectively prevent the uniformity of the wind when the PCB board is heated, and achieve higher repeated heating;

● Each temperature zone adopts forced independent circulation, independent PID control, and independent heating methods up and down, so that the temperature of the furnace cavity is accurate and uniform, and the heat capacity is large;

● Online UPS equipped with power failure protection function to ensure the normal output of the PCB board after power failure without damage;

● Independently controlled cooling system, forced air cooling; the temperature of the PCB board after the machine is ≤50℃;

● The insulation layer is made of high-quality aluminum silicate insulation material, and the multi-layer insulation furnace design. The surface temperature of the furnace outer jacket is about 5 degrees higher than the ambient temperature, which effectively reduces the working environment temperature, has good insulation effect, and heats up quickly, from room temperature to working temperature. ≤20min; Special furnace design, low power consumption;

Guangshengde six temperature zone lead-free reflow soldering machine GSD-M6C structure diagram

Six temperature zone lead-free reflow soldering machine GSD-M6C air transport principle

The function of this machine is to heat the components pasted on the surface of the PCB. The uniform hot air is generated to melt the tin paste, thereby obtaining the prescribed temperature map of the tin paste. Without causing any damage to the PCB and components (for example, burning or dark burning), the stable controlled temperature ensures excellent soldering quality. In actual application, it can also be used for patch adhesive curing (it can be appropriately accelerated).
