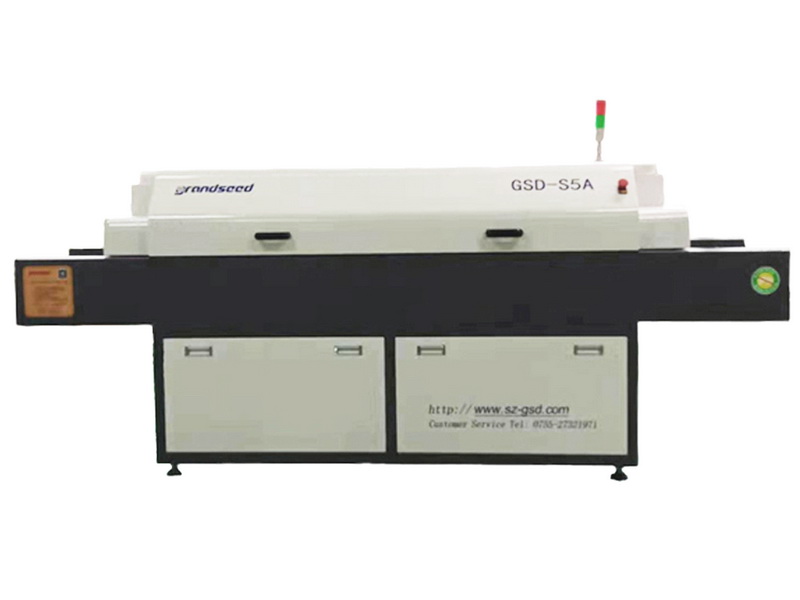

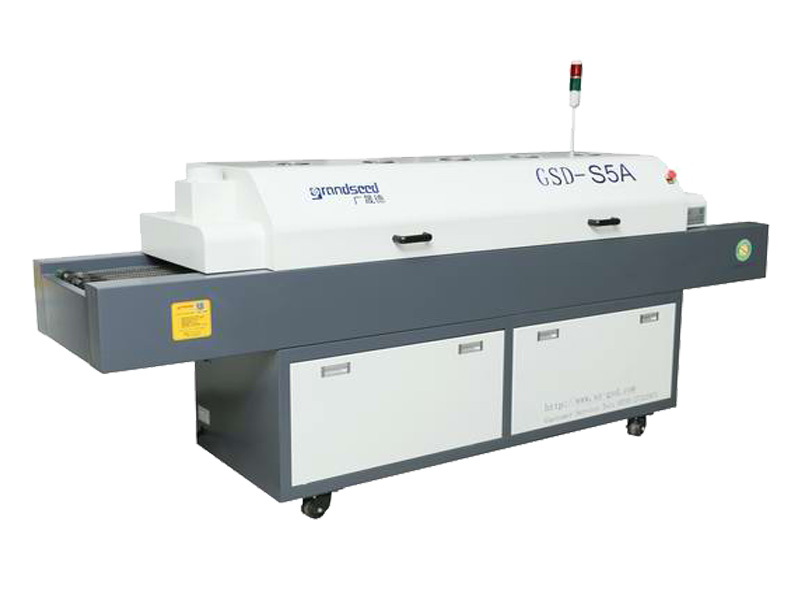

Guangshengde five temperature zone small lead-free reflow soldering GSD-5SA structure details

The performance characteristics of the small lead-free reflow soldering GSD-5SA in the five-temperature zone of Guangshengde

● In order to prolong the service life of the motor, our company's professional and technical personnel design professionally; make the internal cooling cycle convection, so that the temperature around the motor is reduced to about 38°C.

● The high-quality, high-temperature, high-speed motor has smooth wind, low vibration and low noise;

● Professional wind wheel design, stable wind speed, effectively prevent the uniformity of the wind when the PCB board is heated, and achieve high repeated heating;

● Each temperature zone adopts forced independent circulation, independent PID control, and independent heating methods up and down, so that the temperature of the furnace cavity is accurate and uniform, and the heat capacity is large;

● Equipped with power-off protection function to ensure the normal output of the PCB board after power-off, without damage; according to the characteristics of transmission dynamics, the professionally designed removal function (patented institution), after power-off, the product can be removed from the furnace within a few seconds, which is safe and convenient ,save time and energy.

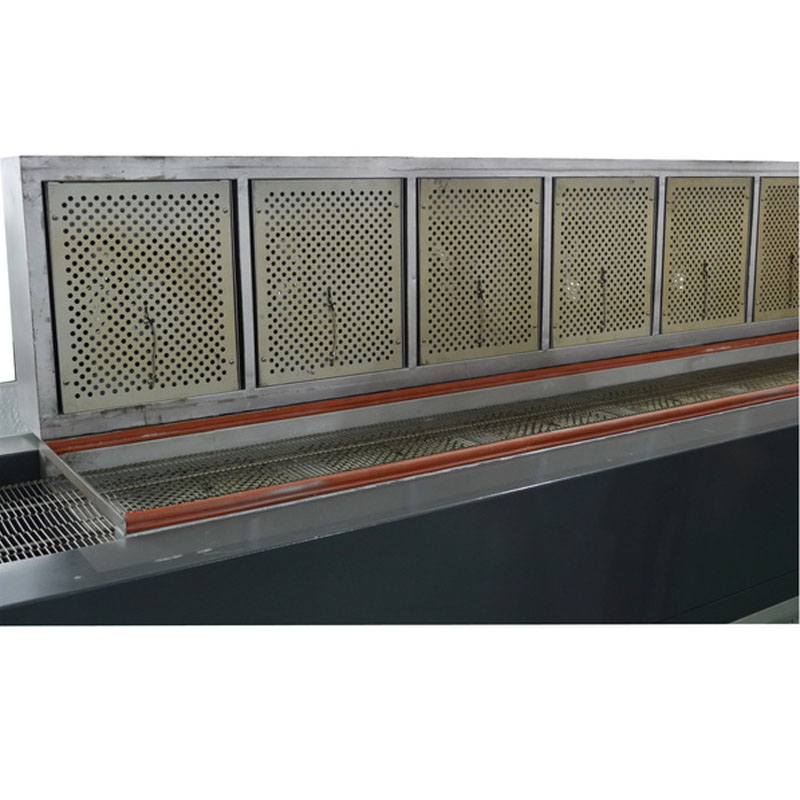

Guangshengde five temperature zone small lead-free reflow soldering GSD-5SA each temperature zone function description

The first temperature zone: upper preheating zone, "digital temperature control" 3.5KW

Under the first temperature zone: lower preheating zone, 　 digital temperature control, 　 3.5kW

Upper second temperature zone: upper preheating zone, "digital temperature control" 2.7KW

Under the second temperature zone: lower preheating zone, 　digital temperature control, 　2.7KW

Upper third temperature zone: upper drying zone, "digital temperature control" 2.7kW

Under the third temperature zone: lower drying zone, 　digital temperature control, 　2.7KW

The fourth temperature zone: upper drying zone, digital temperature control 　 2.7KW

Lower fourth temperature zone: lower drying zone, digital temperature control, 2.7KW

Upper fifth temperature zone: upper reflux zone, digital temperature control 　 3.5kW

Under the fifth temperature zone: lower reflux zone, digital temperature control, 3.5kW
